How to set up SSOs (Google Workspace)

※We recommend that SSO be set up be performed by someone from the security or IT teams within your organization.



We recommend that you complete the SSO set up on Unipos before registering members on Unipos. Because before and after setting up SSO, the login method and the information in the invitation email will change.

Please see the page below before setting up SSO.

Reminders when set up SSO



This section explains how to set up SSO in Google Workspace.

There are 9 steps in setting up SSO on Google Workspace.



1. Go to SAML app settings from the Google Admin menu

In the Google Admin menu, click "Apps" > "Web and mobile apps" .

Then, click "Add App" > "Add custom SAML app".



2. Set the app name and app icon in “App Details”

Set an optional display name and icon.

※The application name does not necessarily have to be “Unipos”.



The Unipos logo can be downloaded below.

https://unipos.me/ja/guideline



Then, click "Continue.



3. Enter the "Google ID provider details" to the Unipos SSO settings page

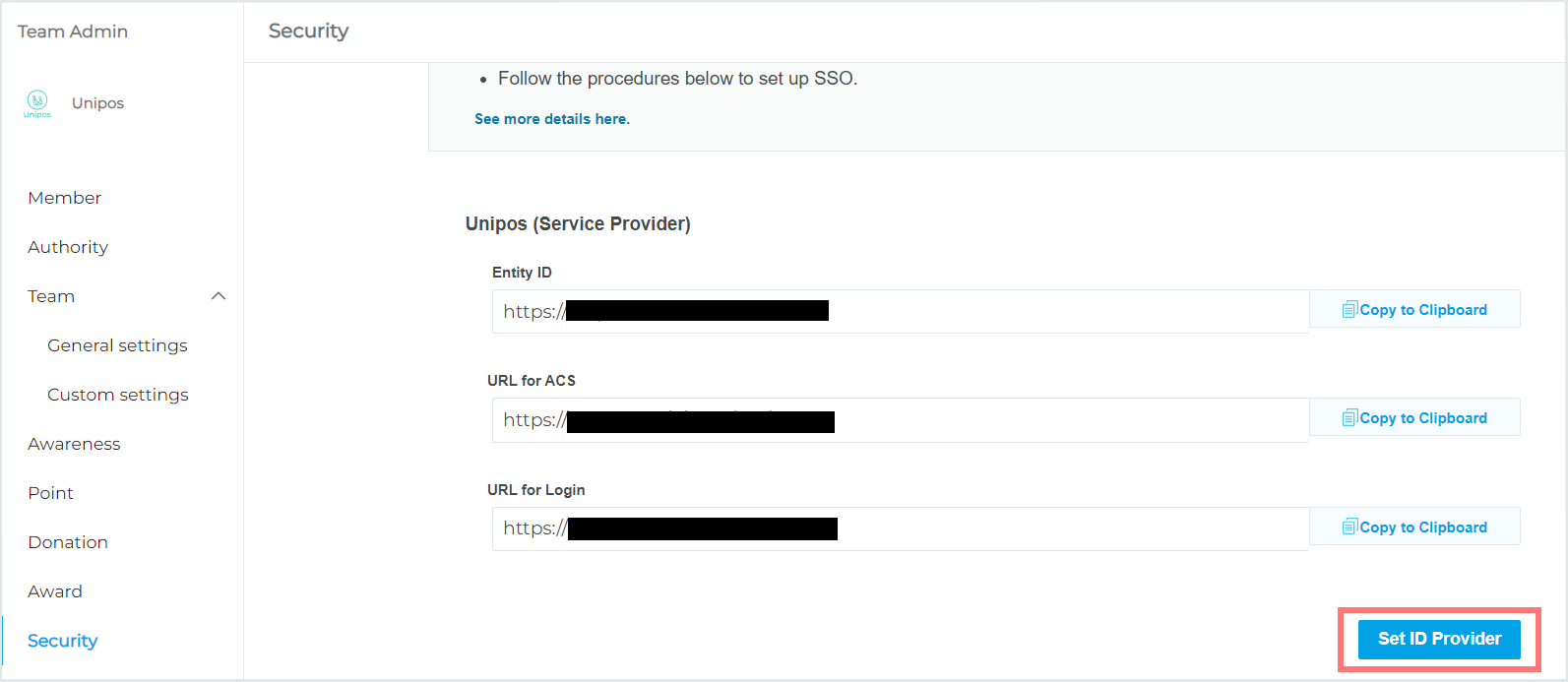

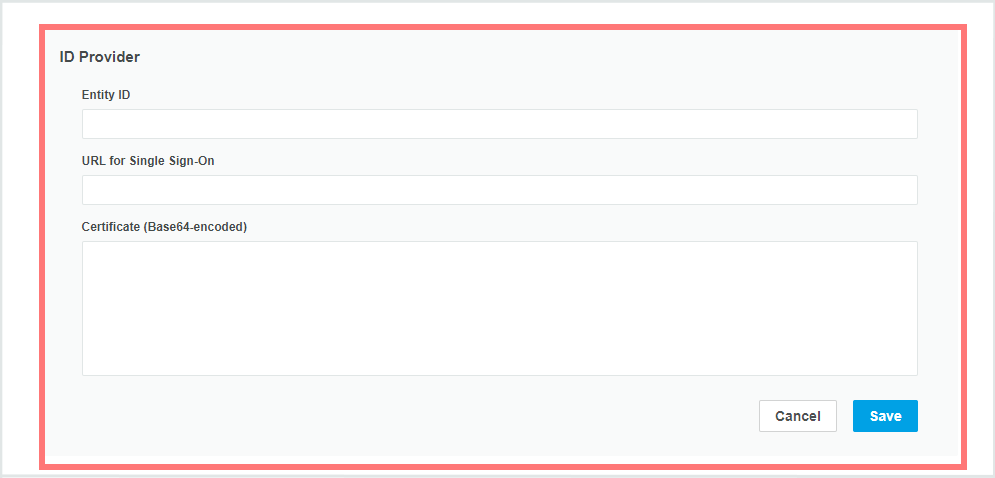

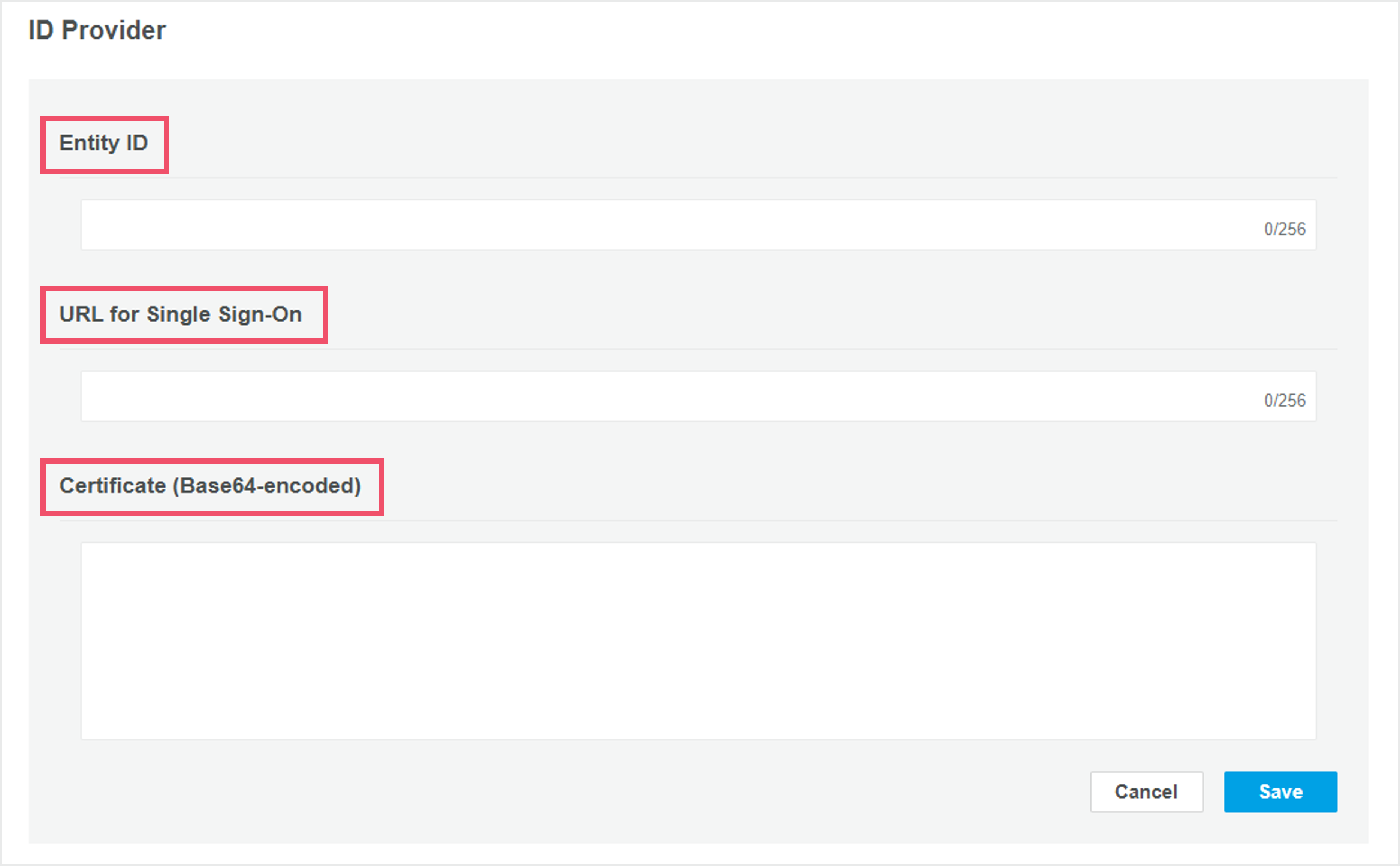

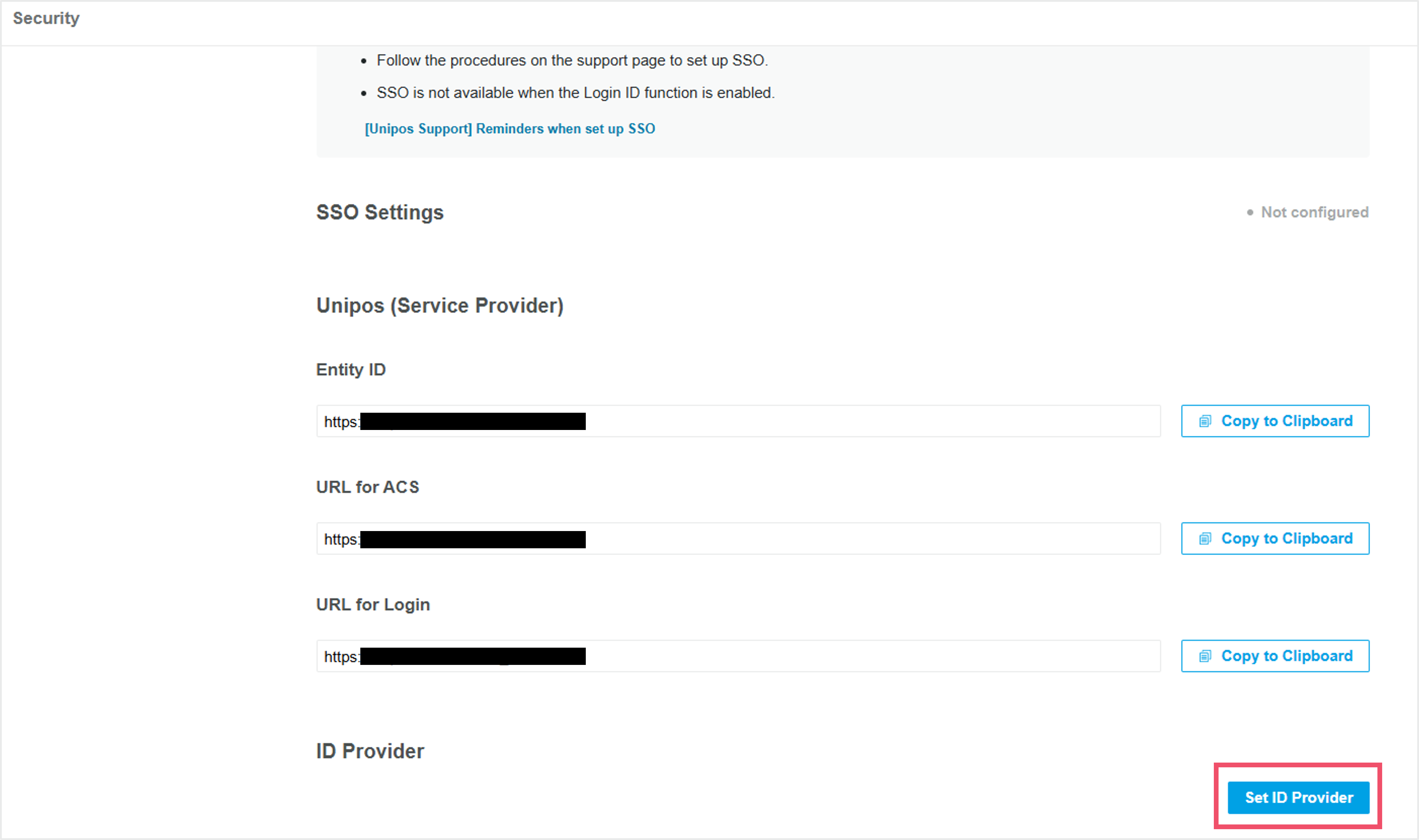

Using a different tab, open Team Admin > Security > SSO Settings and click "Set ID Provider".

1. Click Download icon on the right side of Certificate
2. Open downloaded files in text format
3. Copy the text and paste it into the "Certificate (Base64 encoded)" input field in Unipos



4. Enter the required information in “Service Provider Details”

Please refer to the chart below and enter the required information in “Service Provider Details”.

For the SSO information of Unipos, please comfirm from Team Admin > Security > SSO Settings.

Then, click "Next".

Service Provider Details	Required information
ACS URL	URL for ACS（the SSO information of Unipos）
Entity ID	Entity ID（the SSO information of Unipos）
Signed Response	tick (a box)
Name ID Format	EMAIL
Name ID	Basic information/Main email address



5. Click "Complete"

Don't do anything in the "Attribute mapping setting", click "Complete".



6. Turn on the application from the list of SAML apps

Click on the the application you created in the above steps(1-5).

※ If you don't give access authority to all users, select "some organizations".

Select “On” in the service status, and click “Save”.



7. Operation test (needs to be done by admins)

Please log out of Unipos before running the Operation test.

Log into Google Workspace and Choose Unipos from the Google Workspace app menu.

If you can log in to Unipos, SSO is successfully set up.

If you Unipos login fails, please confirm the above steps and try again.



8. Add members from the Unipos Team Admin

Click “How to manage members on Unipos” to confirm how to add members.



This completes the set up.
